This version of our Lift Table Trolley System includes a Ball Transfer Table that allows two inches of left to right, and twelve inches front to rear movement for component positioning. The ball transfers are sealed and bolted to the table for easy replacement if damaged

Use our new three-wheeled Heavy Duty Transport Cart to move Air Brake Valves, Coupler Knuckles, or other heavy repair components. The three wheel design eliminates the need to tip the cart back for transport. The wide, flat free tires allow the cart to be moved across shop floors without worry of being caught in the gap between the rail and the floor. A drop-down bail is included to keep material in place during transport. The step-in design allows the operator to get close to the cart shelf for material placement.

• Uses a mechanical screw type mechanism that is powered by a cordless drill.
• The screw mechanism provides, a fast, positive method of lowering and raising the center plate.
• The upper support plate allows 4 degrees of movement frontward and rearward to allow angle adjustment for jacking freight cars.
• The plate also allows about 1 inch of side-to-side travel for adjustment.
• Equipped with large diameter flat-free wheels for movement across rough terrain.
• This configuration of the fixture is for expossed rail use.

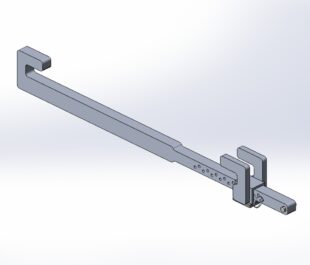

Use to transport complete E & F style Draft Gear Assemblies or single yokes.
May be used with any overhead crane, hoist, or forklift equipped with a hook type lifting device. Includes standard lifting fixture identification tag.
Equipped with four different lifting points to balance all types of assemblies.
